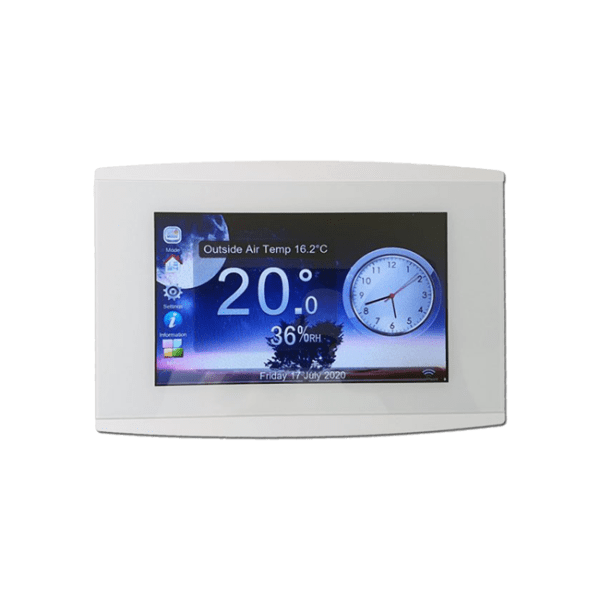

Inspire Touch – 5″Color Zoning WiFi Thermostat

RRP $1,137.00 Inc. GST

SMT-775 “Inspire Touch” Colour Wi-Fi Thermostat with 9 Zones

Available on back-order

SKU: SMT-775 Inspire Categories: , Tags: , , ,

The Inspire Touch Zoning Smart WiFi thermostat features a full color 5” touch screen with a modern interface and attractive icons. Tapping icons open pages that permit the adjustment of comfort levels, system modes and holiday scheduling that are all laid out in an attractive and intuitive format. The Inspire Touch is that easy to use that the user should never need read the manual or call tech support for help using their thermostat.

The capabilities of the Inspire Touch WiFi Thermostat do not stop with a fancy user interface. The Inspire Touch can easily control up to 9 temperature-controlled zones by the simple addition of the optional zone temperature sensors. Adding extra wall controllers (up to a maximum of 4) further adds to the Inspire’s capability. A change made on any one of the wall controllers will automatically synchronize, updating information to the other wall controllers. Each wall controller can turn zones or the HVAC system on or off or adjust individual zone temperatures. With the Inspire Touch when using multiple wall controllers, you can adjust the upstairs comfort level from the downstairs wall controller or turn the kid’s bedroom zone on or off from the wall controller located in the master bedroom.

The Inspire Touch, not only an attractive thermostat, it is easy to use and a powerful climate control system.

Features

  • 5” Colour “Capacitive” Touch Screen
  • Up To 4 Wall Controllers Per System
  • Up To 9 Temperature Controlled Zones
  • 24V Zones or 0-10V modulating
  • Full Scheduling for Each Zone
  • Wi-Fi – IOS iPhone, Android
  • Rh Monitoring and Control
  • Single or Three Fan Speed Control
  • Heat Pump or Heat Cool Control Logic
  • Compatible with most AC Brands (ducted / Inverter – *optional Interface required)
  • 0-10V for Valve Control
  • Photo Frame Function / Screen Saver
  • Customizable Display
  • Light Sensor for Automatic Backlight Control
  • Extensive Installer Options Menu
  • Installer “Theft Lock” Function
  • Full Local Product Support
  • Designed and Built by Smart Temp Australia
  • Comprehensive 3 Year Warranty RTB  Smart Thermostat Myair Airtouch Milieu advantage air

Downloads

Inspire Touch Smart Temp - Brochure

SMT-775 Inspire Touch Manual

SMT-775 Inspire Touch - Quick User Guide

Smart Temp Gateway Inverter Adapter manual for Inspire & Halo
